🚀 Getting Started

🧰 Install Prerequisites

What you will need in order to get started with libhal.

  • pipx: 1.5.0 or above
  • git: usually preinstalled on all operating systems except for Windows

Skip these steps if you already have both of these installed

Info

If you are using 20.04 you will need to upgrade Python to 3.10:

sudo apt update
sudo apt install software-properties-common -y
sudo add-apt-repository ppa:deadsnakes/ppa
sudo apt install Python3.10

Install pipx and set it up:

sudo apt install pipx
pipx ensurepath

Install Homebrew:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

Install latest version of Python, pipx:

brew install python
brew install pipx
pipx ensurepath

Install Rosetta (only required for M1 macs):

/usr/sbin/softwareupdate --install-rosetta --agree-to-license

We recommend using the choco package manager for windows as it allows easy installation of tools via the command line.

To install choco, open PowerShell as an administrator and run the following command:

Set-ExecutionPolicy Bypass -Scope Process -Force; [System.Net.ServicePointManager]::SecurityProtocol = [System.Net.ServicePointManager]::SecurityProtocol -bor 3072; iex ((New-Object System.Net.WebClient).DownloadString('https://community.chocolatey.org/install.ps1'))

Tip

If the choco command doesn't work after running this script try closing and opening again PowerShell.

When choco prompts you to run install scripts from the commands below enter all so it can install everything.

Install git, python and pipx (must be in admin powershell):

choco install git
choco install python --version=3.12.2
python -m pip install --user pipx
python -m pipx ensurepath

Install Visual Studio for the rest of the necessary components. The download can be found on Microsoft's website.

There is no more installation required at this point.

Close and reopen powershell as a normal user now.

Installing Conan

To install conan, simply run the following pipx command:

pipx install "conan>=2.18.0"

🔧 Setting up Conan

First install the libhal's conan configuration which is done via the commnd below.

conan config install https://github.com/libhal/conan-config2.git

This will install of the conan hal command and files needed to build for various target devices and platforms.

Now run the conan hal setup command:

conan hal setup

This will add the libhal package repository to the list of remote repos to search for packages in. This will also generate a default conan profile if one does not already exist.

Setup is now done. Its time to build an application.

🛠️ Building Demos

Before start building demos, we have to consider on what device do we plan to run the demo on? ARM microcontrollers are quite common so lets use that as an example. Lets clone the libhal-arm-mcu repo.

git clone https://github.com/libhal/libhal-arm-mcu.git
cd libhal-arm-mcu

To build using conan you just need to run the following:

conan build demos -pr hal/mcu/stm32f103c8 -pr hal/tc/arm-gcc-12.3

conan build demos -pr hal/mcu/lpc4078 -pr hal/tc/arm-gcc-12.3

You can find binaries of your application within the demos/build/lpc4078/MinSizeRel/ for lpc4078 and demos/build/stm32f103c8/MinSizeRel/ for the stm32f103c8

Error

The following error occurs when an application was built with a compiler that has since been deleted.

  The CMAKE_CXX_COMPILER:

    /Users/user_name/.conan2/p/b/arm-ged7418b49387e/p/bin/bin/arm-none-eabi-g++

  is not a full path to an existing compiler tool.

To fix this, simply delete your build directory and build again.

rm -r demos/build

💾 Uploading Demos to Device

In order to complete this tutorial you'll one of these devices:

  • LPC4078 MicroMod with SparkFun ATP board
  • SJ2 Board
  • STM32F103 MicroMod with SparkFun ATP board
  • STM32 Blue Pill along with USB to serial adapter

Install the stm32loader flashing software for STM32 devices:

pipx install stm32loader

then

stm32loader -e -w -v -B -p /dev/tty.usbserial-10 demos/build/stm32f103c8/MinSizeRel/uart.elf.bin

Replace /dev/tty.usbserial-10 with the correct port name of the device plugged into your computer via USB.

Use demos/build/stm32f103c8/Debug/uart.elf.bin or replace it with any other application to be uploaded.

Install the nxpprog flashing software for LPC devices:

pipx install nxpprog

Tip

On Ubuntu 22.04 you will need to use the command python3.10 because the default python is usually 3.8.

pipx install nxpprog

On other systems you may have to just use python as the command.

nxpprog --control --binary demos/build/lpc4078/MinSizeRel/uart.elf.bin --device /dev/tty.usbserial-140
  • Replace /dev/tty.usbserial-140 with the correct port name of the device plugged into your computer via USB.
  • Replace uart.elf.bin with any other application found in the demos/applications/ directory.

Question

Don't know which serial port to use?

On Linux

With the device unplugged, run the below command

$ ls /dev/ttyUSB*
ls: cannot access '/dev/ttyUSB*': No such file or directory

Plug the device into the USB port, then rerun the command, the device should appear in the result:

$ ls /dev/ttyUSB*
/dev/ttyUSB0

The device may also be under the name /dev/ttyACM*, like below

$ ls /dev/ttyACM*
/dev/ttyACM0

From the above 2 examples for device name, the port name in the stm32loader command would be replaced with /dev/ttyUSB0 or /dev/ttyACM0 respectively.

On Mac

With the device unplugged, run the below command

$ ls /dev/tty.usbserial-*
zsh: no matches found: /dev/tty.usbserial-*

Plug the device into the USB port, then rerun the command, the device should appear in the result:

$ ls /dev/tty.usbserial-*
/dev/tty.usbserial-14240

From the above example for the device name, the port name in the stm32loader command would be replaced with /dev/tty.usbserial-14240.

On Windows

Open Device Manager, by pressing the Windows key and typing "Device Manager", then pressing enter.

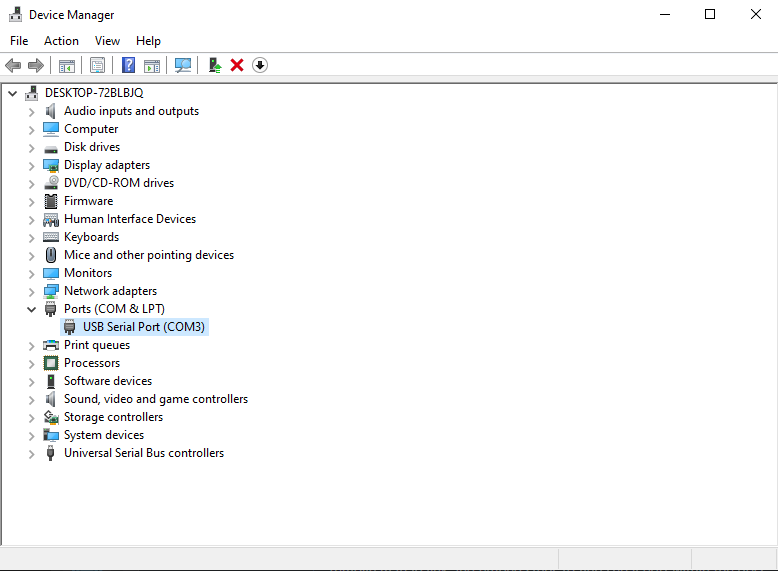

Once the Device Manager window is open, plug the device in to your computer via USB and expand the Ports (COM & LPT) menu. The device should be visible in the list with a COM port like below:

image From the above screenshot, the port name in the stm32loader command would be replaced with COM3.

Question

stm32loader command failed because it doesn't have permission?

On Linux

Add yourself to the dialout user group to give yourself the permission. This group has the permission to talk to serial ports.

$ usermod -a -G dialout $USER

⚡️ Changing Built Type

The build type determines the optimization level of the project. The libhal default for everything is MinSizeRel because code size is one of the most important aspects of the project.

You can also change the build_type to following build types:

  • 🧪 Debug: Turn on some optimizations to reduce binary size and improve performance while still maintaining the structure to make debugging easier. Recommended for testing and prototyping.
  • ⚡️ Release: Turn on optimizations and favor higher performance optimizations over space saving optimizations.
  • 🗜️ MinSizeRel: Turn on optimizations and favor higher space saving optimizations over higher performance.

To override the default and choose Release mode simply add the following to your conan command: -s build_type=Release

🎉 Creating a new Project

Start by cloning libhal-starter:

git clone https://github.com/libhal/libhal-starter.git

Take a look at the README.md of libhal/libhal-starter to get details about how to modify the starter project and make it work for your needs.

Tip

In the future we will provide this via the conan new command, using templates installed via conan-config2.
